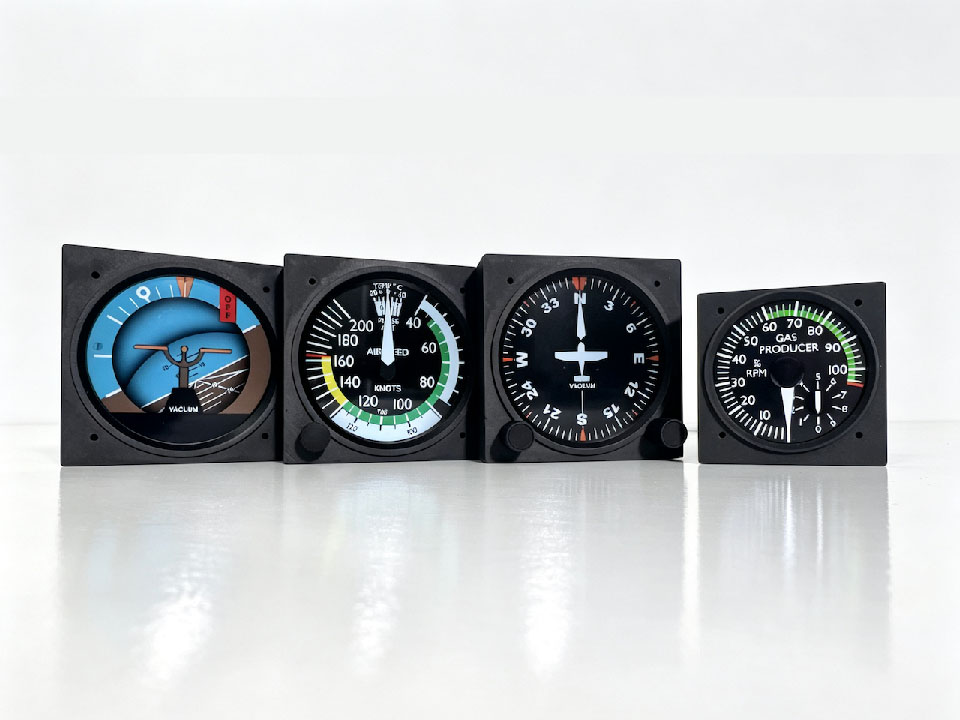

Modular instrument gen2 (customizable)

Description

Lead Time:
5 work days

Download User Manual: SHMG02 User Manual
Download Cutout file in DXF format: CutoutC172.DXF   CutoutC172Stby.DXF

Feartures:
1. Two sides: 3 1/8″(standard gauges); 2 1/4″(smaller ones for engine readings on a Cessna)
2. Standard instrument install dimensions
3. Android based, high refresh rate, high resolution
4. Switchable between different gauges.  We are constantly adding more gauges according to customers’ requirements.  Currently gauges below are already included.  If the one you are looking for is not in the list, please contact us by sending an email to the address support@simionic.net to discuss a customization for you.
5. Adjustable brightness
6. Self sustaining, communicate with computer via USB port, no display port needed
7. Support combination of multiple units with only one USB connection to the computer
8. Support both X-Plane and MSFS(also FSX/P3D)

Available gauges:
By default, we send gauges with Cessna 172S configuration. Please let us know if you need other configurations.

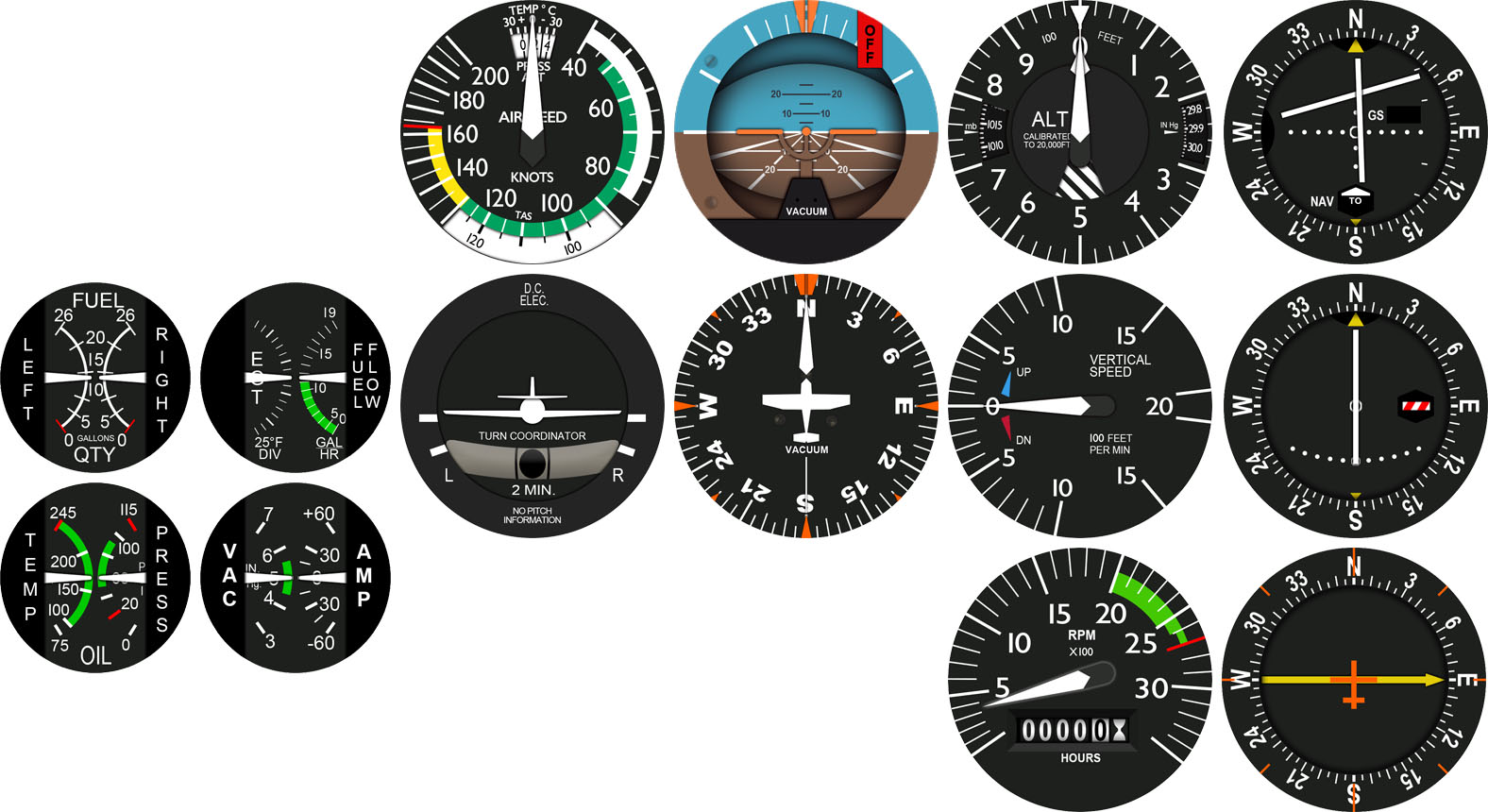

Cessna 172S configuration

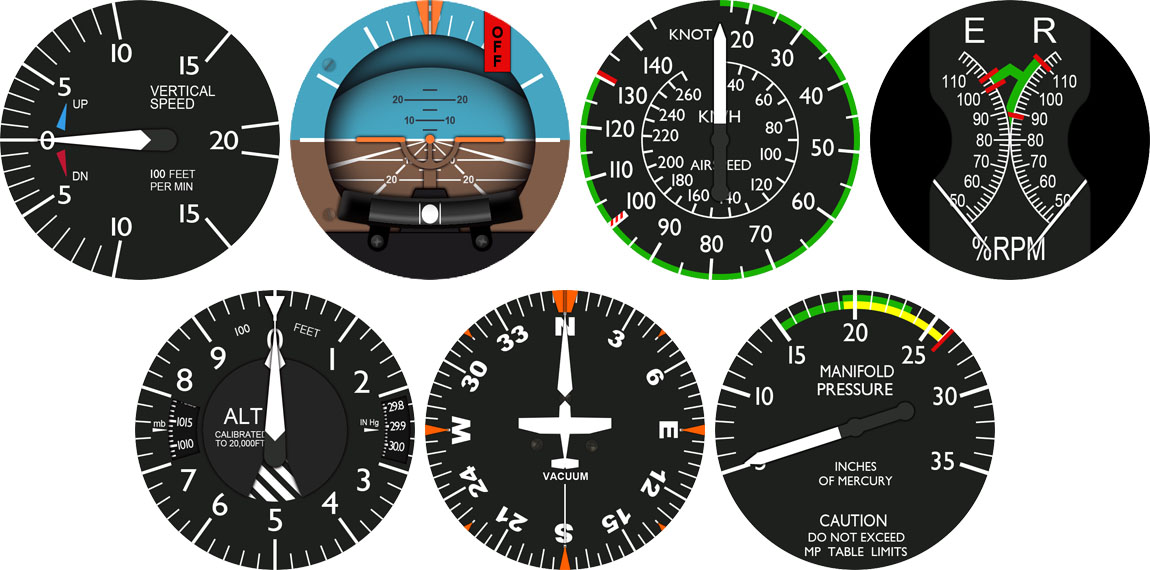

Robinson R44 configuration (tested with VSKYLABS Robinson R44 for X-Plane)

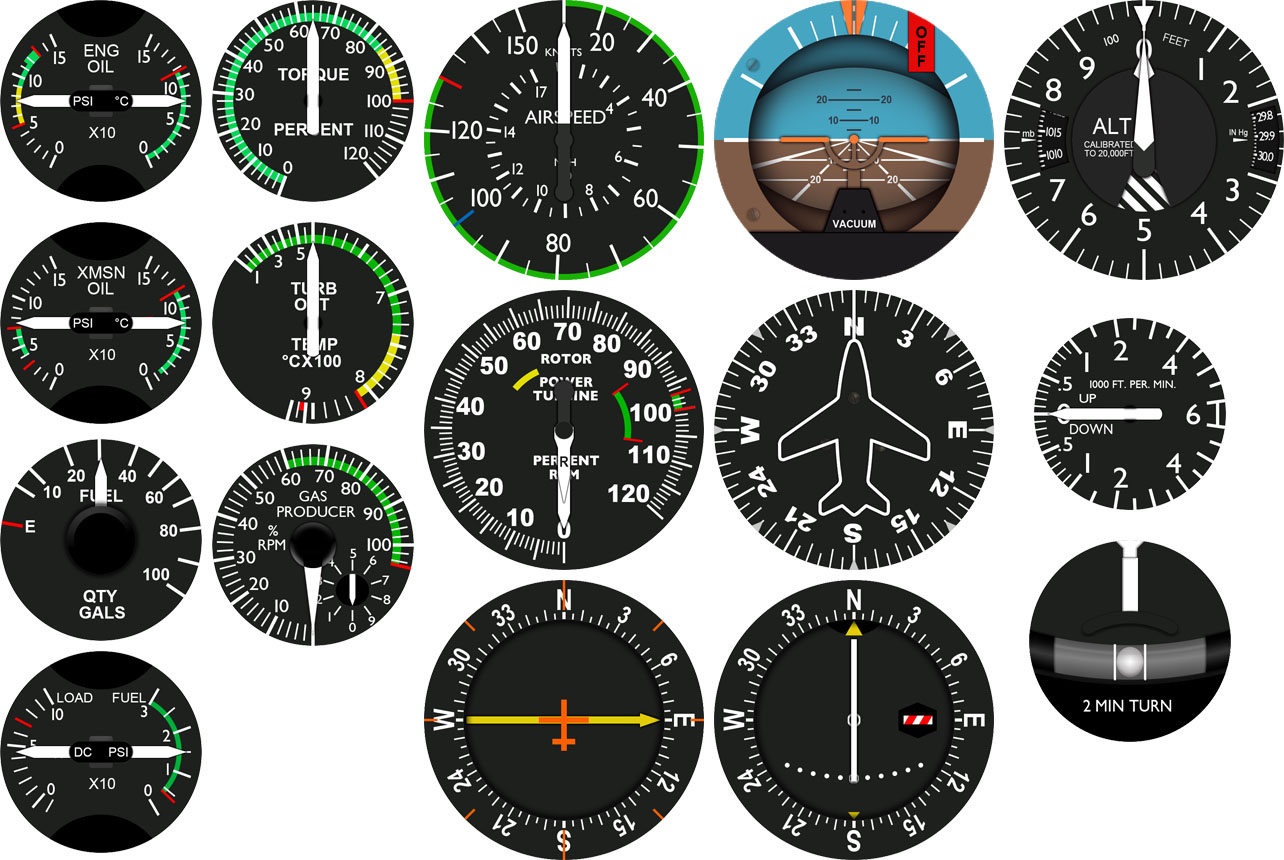

Bell 206 configuration (tested with Dreamfoil DF206B3)

Customization:
If you find the gauge you are looking for is not in the list above.  Please contact us by sending an email to the address support@simionic.net to discuss a customization for you.  We take a $25 one-time fee for the customization work.

Remark:

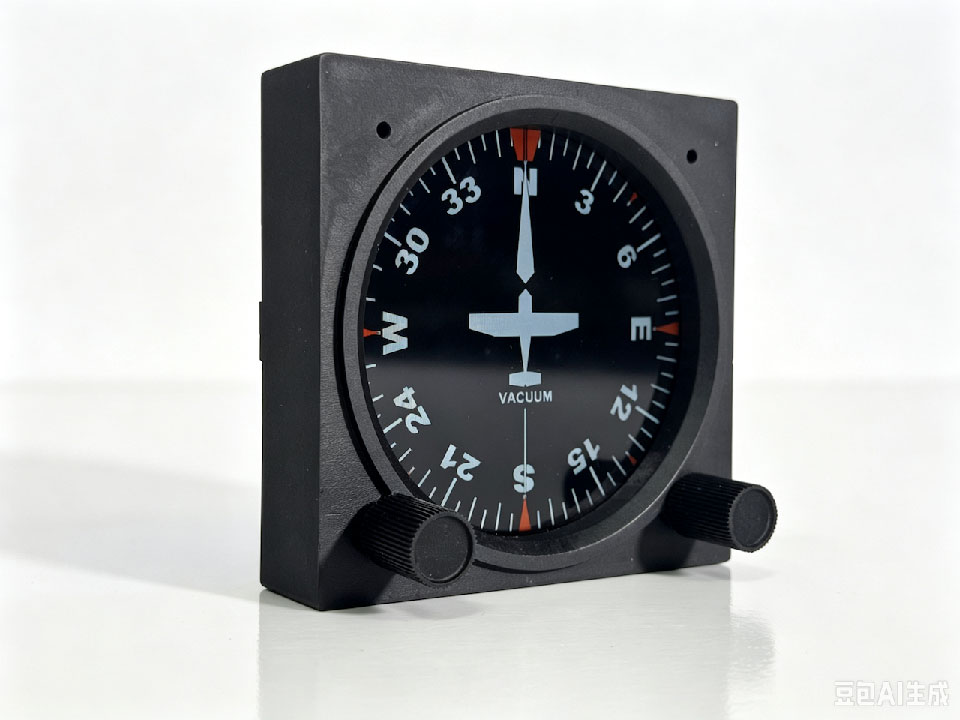

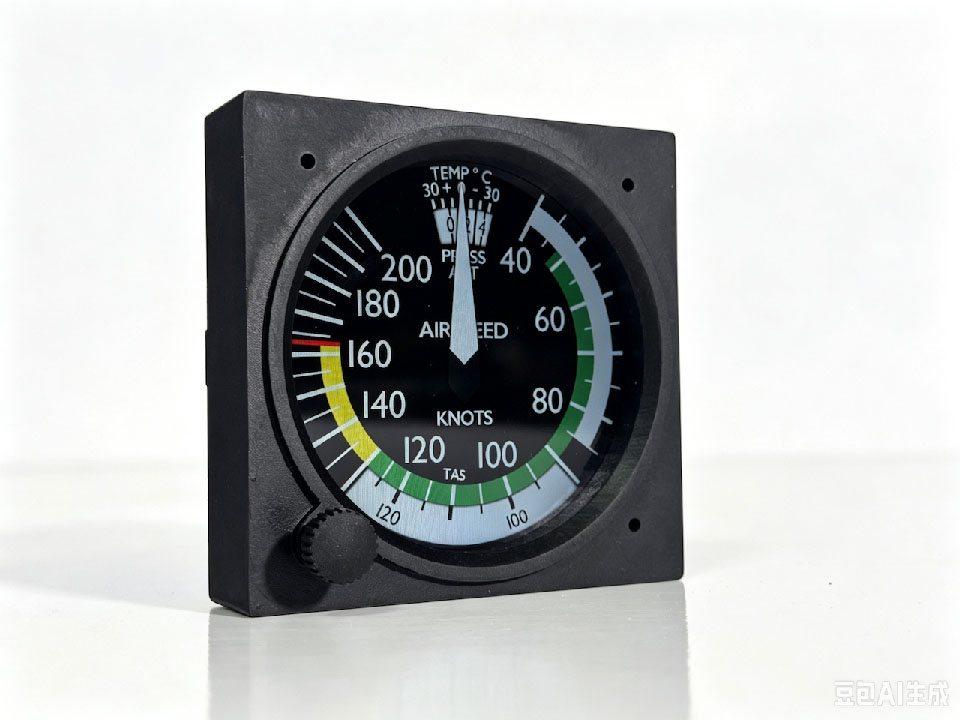

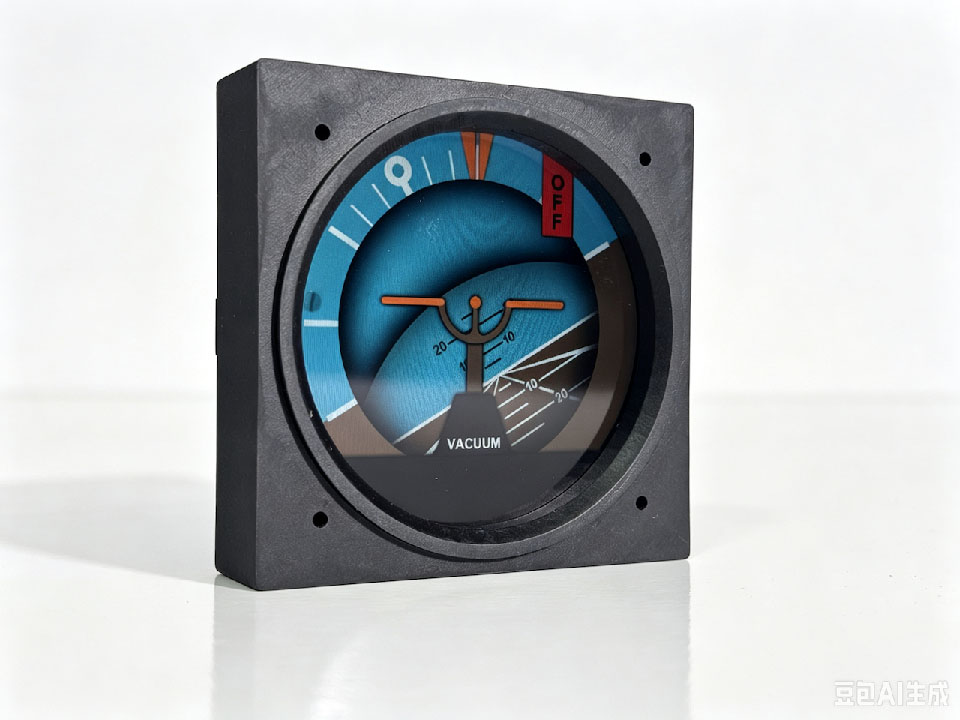

There are 3 different 3 1/8″ gauges, no knob, 1 knob and 2 knobs.  Please choose the one best suits your application.

A USB power with a minimum of 10W output is required if the unit is not connected to a computer.

Shipping:
Worldwide from China via DHL Express

Refund Policy:
If you are not satisfied with your purchase, please contact us in 15 days from the receiving date to get a full refund or exchange. Returned or exchanged products must be in the condition you received them and in the original box and/or packaging.
Shipping towards us as well as shipping from us towards the client shall be paid by the client. We may require pre-payment of return shipping costs in advanced by bank prepayment or other type of payment.
